Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Warna: | Sesuai dengan permintaan pelanggan | Ukuran Kolet: | ø3.176 atau ø6 mm |
|---|---|---|---|
| Menyoroti: | Mesin Ukiran CNC Spindle Kecepatan Tinggi,Mesin penggilingan CNC Spindle Kecepatan Tinggi,Spindle CNC torsi tinggi 60000 rpm |
||

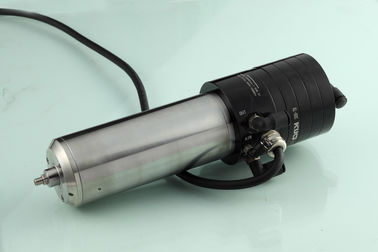

MODEL: KL-60C
NAME : BALL BEARING SPINDLE
SPEED RANGE: 10,000 - 60,000 rpm
BEARING TYPE: Ball Bearing
SPINDLE WEIGHT: 4.6kg
COLLET SIZE: ø3.176 or ø6 mm(Optional)
Working Air Pressure: ≥5.0 kgf/cm²
Motor power: 1.5KW
Coolant: Water or Oil
Coolant water temperature: 20±2℃
Voltage : 33-182V
Max Current : 5A
Static Runout :≤2.0μm
Dynamic Runout: ≤10μm
Vibration: 1.0MM/S
Temperature sensor Resistence : R=10KΩ±5%(at 25℃)
Competitive Advantage:
LOW STATIC RUN OUT
LOW DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE TIME
MULTYPURPOSE
APPLICATION :
Suitable for CNC engraving & milling machine,dental grinding,touch-screen glass of mobile outline grinding,
Quick Detail:
|
MODEL |
DESCRIPTION |
Application |
Machine reference |
Bearing type |
|
KL-60C |
SPEED RANGE: 10,000 - 60,000 rpm |
CNC engraving & milling machine,dental grinding,touch-screen glass of mobile outline grinding, |
TALIANG; LISONG |
BallBearing |
SPECIFICATION:
|
SPEED RANGE(RPM) |
10,000-60,000 |
|
FREQUENCY (HZ) |
167-1000 |
|
MOTOR TYPE |
THREE PHASE |
|
MOTOR OUTPUT POWER |
1.5KW |
|
TORQUE(N.cm) |
382 |
|
VOLTAGE (V) |
33-182 |
|
COLLET CLAMPING DIAMETER (mm) |
ø3.175 OR ø6 |
|
COOLING TEMPERATURE(°C) |
20±2 |
|
BEARING TYPE |
BALL BEARING |
| STATIC RUNOUT(μm) | ≤2 |
|
DYNAMIC RUNOUT (μm) |
≤10 |
|
VIBRATION (mm/s) |
≤1.0 |
|
THREE PHASE RESISTANCE (Ω) |
2.2±0.2 |
|
COLLET LOCK TYPE |
DETACHABLE |
|
SPINDLE WEIGHT (kg) |
Around 4.6 |
|
MAX CURRENT (A) |
5 |
|
DUST BLOW AIR PRESSURE (kg/cm2) |
≥2.0 |
|
RELEASE AIR PRESSURE (kg/cm2) |
≥5 |
Spindle Drawing
